Definion 3 "2.0>5.1 Extension-Set Surround"

€110
€550
Quantity
ADD TO CART
BUY IT NOW
  • Detail

    Highlights

    Key advantages at a glance

    • 5.1 expansion set for the Definion 3/3S series
    • Transforms the Definion 3 or 3S into a surround system with centre, subwoofer & rear speakers

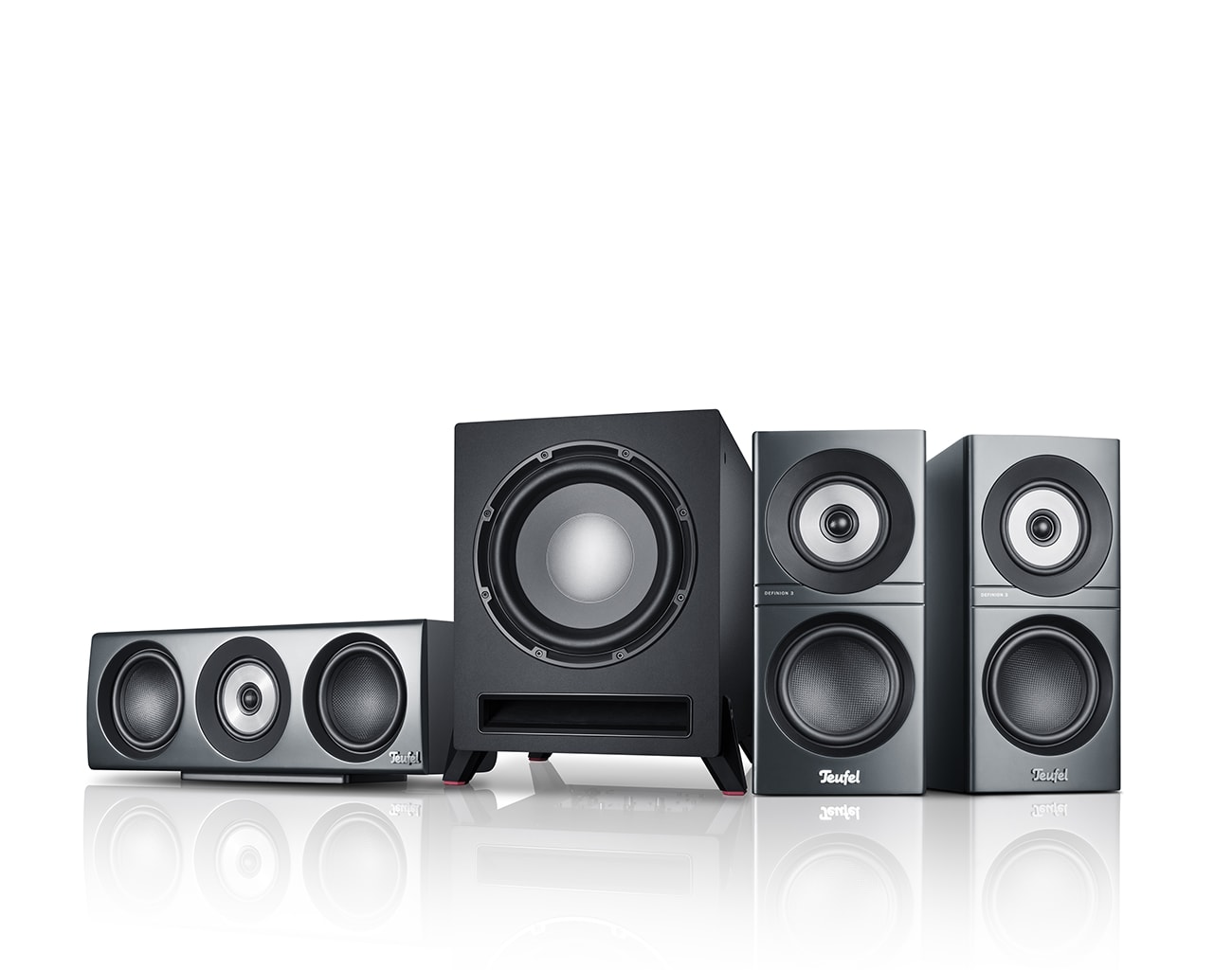

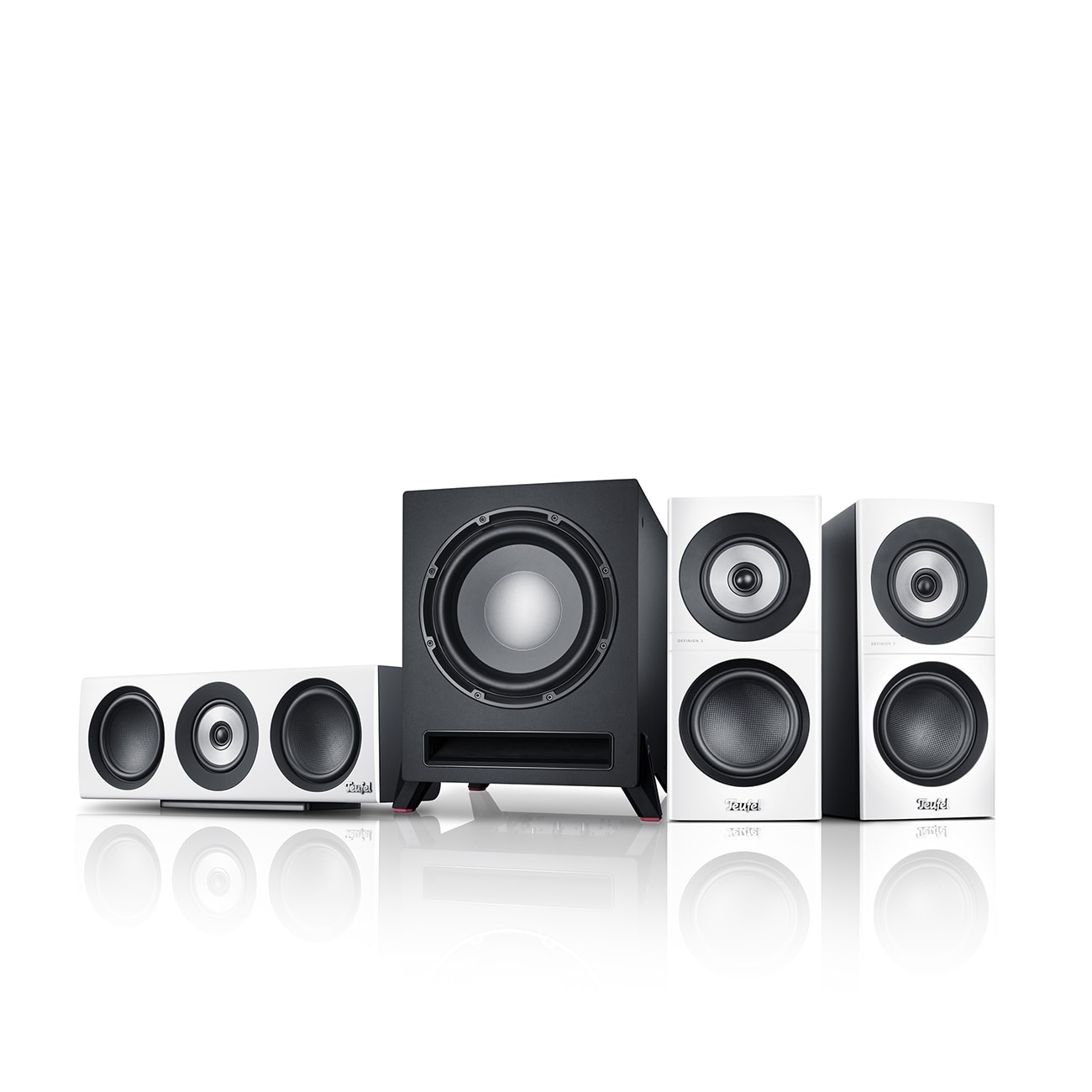

    • Included components: 2 x Definion 3S, 1 X Definion 3 Center, 1 X Subwoofer T 10
    • Suitable for use with high-end AV receivers

    Features

    All technologies at a glance

    Definion 3 - 5.1-Ausbau-Set

    This 5.1 expansion set transforms your Definion 3 or Definion 3S loudspeakers into the perfect surround sound system. The individual components are precisely aligned with the Definion 3 series in order to ensure optimal playback. The powerful subwoofer transforms every movie into a cinematic experience.

    Our Berlin-engineered SCA Coaxial Enclosure

    Teufel spent two and a half years developing the DEFINION 3's unique flat diaphragm coaxial enclosure. SCA (Synchronized Coaxial Acoustics) technology allows it to act as a single point audio source, ensuring the least possible lag between midwoofer and tweeter.


    Nearly all output frequencies reach the listener's ear at exactly the same time, resulting in particularly authentic and natural sound reproduction.

    Sound dispersion
    Like in the real world, individual sounds are perceived as coming from a single source. Sound is dispersed uniformly for identical audio at various listening positions.

    Tweeter and midwoofer
    The tweeter and midwoofer are fused together into a single element. This leads to a superior sense of space than can be achieved with a separate tweeter.

    Flat diaphragms
    Flat diaphragms avoid constricting the tweeter sonically.  They vibrate air particles naturally on a single plane, preventing interference and producing more precise sound as a result.

    CFRP diaphragm with wok cones on all woofers.

    Wok woofers are so named because they lack protective dust caps in their center and so resemble the deep pans that are their namesake. CFRP (carbon-fiber-reinforced polymers) gives the wok woofer diaphragms in the DEFINION range a highly stable structure while keeping them very lightweight, which benefits precision in the bass range. This, in conjunction with the precision channel, allows the diaphragms to have cutoff frequencies as low as 50 Hz. Astounding for a driver that's only 14 cm wide in the back.

    Neutral, balanced and true-to-source

    Another advantage of the three CFRP enclosures is that they have an incredibly broad output range. The result is very harmonious and coherent performance up to middle ranges. From there, crossover gently transfers sounds to where they're most optimal for the SCA coaxial enclosure.

    At the end of this harmonizing process, we get a very flat frequency response for identical output in all sound ranges with a particular focus on powerful bass performance so it can reproduce even bassier music styles in a way you're sure to enjoy.

    Precision bass reflex system

    A completely redesigned bass reflex systems uses a precision channel that eliminates nearly all of the problems that often occur with bass reflex systems. The precision channel‘s innovative qualities include:

    • A low crossover frequency to the SCA driver
    • The elimination of wind noise though a larger channel size
    • Special constructed molding and curvature of the channel for a deep resonance frequency

    The exact dimensioning of the bass reflex channel ensures that the air rushing through it extends the bass range exactly where the woofer’s low end leaves off.

    Show me more

    Specifications

    Satellite Speaker DEF 3S FCR

    High-end stereo bookshelf speaker with extraordinarily precise play back

    • Description Item
      Width 20 cm
      Height 42.5 cm
      Depth 35.5 cm
      Weight 13 kg
    • Description Item
      High Level speaker inputs 1
      Terminal clamps Gold-plated screw terminals
      Minimum amplifier output power recommended 25 W
    • Description Item
      Suitable for AV receiver Yes
      Banana plug compatible Yes
      Maximum cable diameter 6 mm
      Equalization port (position) back
      Equalization port 1
      Cabinet material MDF
      Cabinet surface Lacquer, silk matte
      Net internal volume 14.5 L
      Tweeter (number per enclosure) 1
      Tweeter (diameter) 25 mm
      Tweeter (material) Textile
      Midrange driver (number per enclosure) 1
      Midrange driver (diameter) 105 mm
      Midrange driver (material) Aluminium
      Woofer (number per enclosure) 1
      Woofer (diameter) 160 mm
      Woofer (material) Carbon fiber
      Continuous power handling (IEC - Long Term) 100 W
      Sensitivity (2.83 V / 1 m) 86 dB
      Frequency range 50 - 22000 Hz
      Peak power capacity (IEC - Short Term) 140 W
      Maximum sound pressure level 105 dB/1m
      Impedance 4 - 8 Ohm
      Crossover frequency to Woofer (recommended) 60 Hz
      Acoustic principle 3-way-system
      Enclosure type Bass reflex
      Crossover frequency internal switch 450 / 3300 Hz

    T 10 Subwoofer

    High-end-class active subwoofer that can be configured in either front- or down-firing modes

    • Description Item
      Width 35.1 cm
      Height 48.3 cm
      Depth 38 cm
      Weight 15.6 kg
    • Description Item
      Cinch input 1
    • Description Item
      Power supply voltage 230 V
      Automatic on/off Yes
      Maximum power consumption 150 W
      Fixed AC power cable Yes
      Safety class 2
      Fuse Yes
      Storage for settings when disconnected Yes
      Standby-Function Yes
      Standby-Power consumption 1 W
      Bass boost/EQ Yes
      Input gain adjustment Yes
      Level control Yes
      Phase control Yes
      Wireless Subwoofer Yes
      Power output capacity impulse (peak) Bass 150 W
      Amplifier configuration 1.0
      Amplifier technology Class D
      Amplifier channels 1
    • Description Item
      Lowest frequency (-3 dB) 33 Hz
      Suitable for AV receiver Yes
      Equalization port 1
      Down-firing Yes
      Front-firing Yes
      Cabinet material MDF
      Cabinet surface Laminated, matte
      Integrated stand Yes
      Woofer (number per enclosure) 1
      Woofer (diameter) 250 mm
      Woofer (material) Aluminium
      Frequency range 33 - 190 Hz
      Maximum sound pressure level 115 dB/1m
      Acoustic principle 1-way-system
      Enclosure type Bass reflex

    Center Speaker DEF 3 C

    High-end centre loudspeaker with extraordinarily precise play back

    • Description Item
      Width 59.2 cm
      Height 20 cm
      Depth 18.8 cm
      Weight 11 kg
    • Description Item
      High Level speaker inputs 1
      Terminal clamps Gold-plated screw terminals
      Minimum amplifier output power recommended 30 W
    • Description Item
      Suitable for AV receiver Yes
      Banana plug compatible Yes
      Maximum cable diameter 6 mm
      Cabinet material MDF
      Cabinet surface Varnish
      Magnetic shielding Yes
      Net internal volume 10 L
      Integrated stand Yes
      Wall mounting brackets Yes
      Tweeter (number per enclosure) 1
      Tweeter (diameter) 25 mm
      Tweeter (material) Textile
      Midrange driver (number per enclosure) 1
      Midrange driver (diameter) 105 mm
      Midrange driver (material) Aluminium
      Woofer (number per enclosure) 2
      Woofer (diameter) 160 mm
      Woofer (material) Carbon fiber
      Continuous power handling (IEC - Long Term) 100 W
      Sensitivity (2.83 V / 1 m) 85 dB
      Frequency range 100 - 22000 Hz
      Peak power capacity (IEC - Short Term) 140 W
      Maximum sound pressure level 105 dB/1m
      Impedance 4 - 8 Ohm
      Crossover frequency to Woofer (recommended) 100 Hz
      Acoustic principle 3-way-system
      Enclosure type Closed
      Crossover frequency internal switch 450 / 3400 Hz
