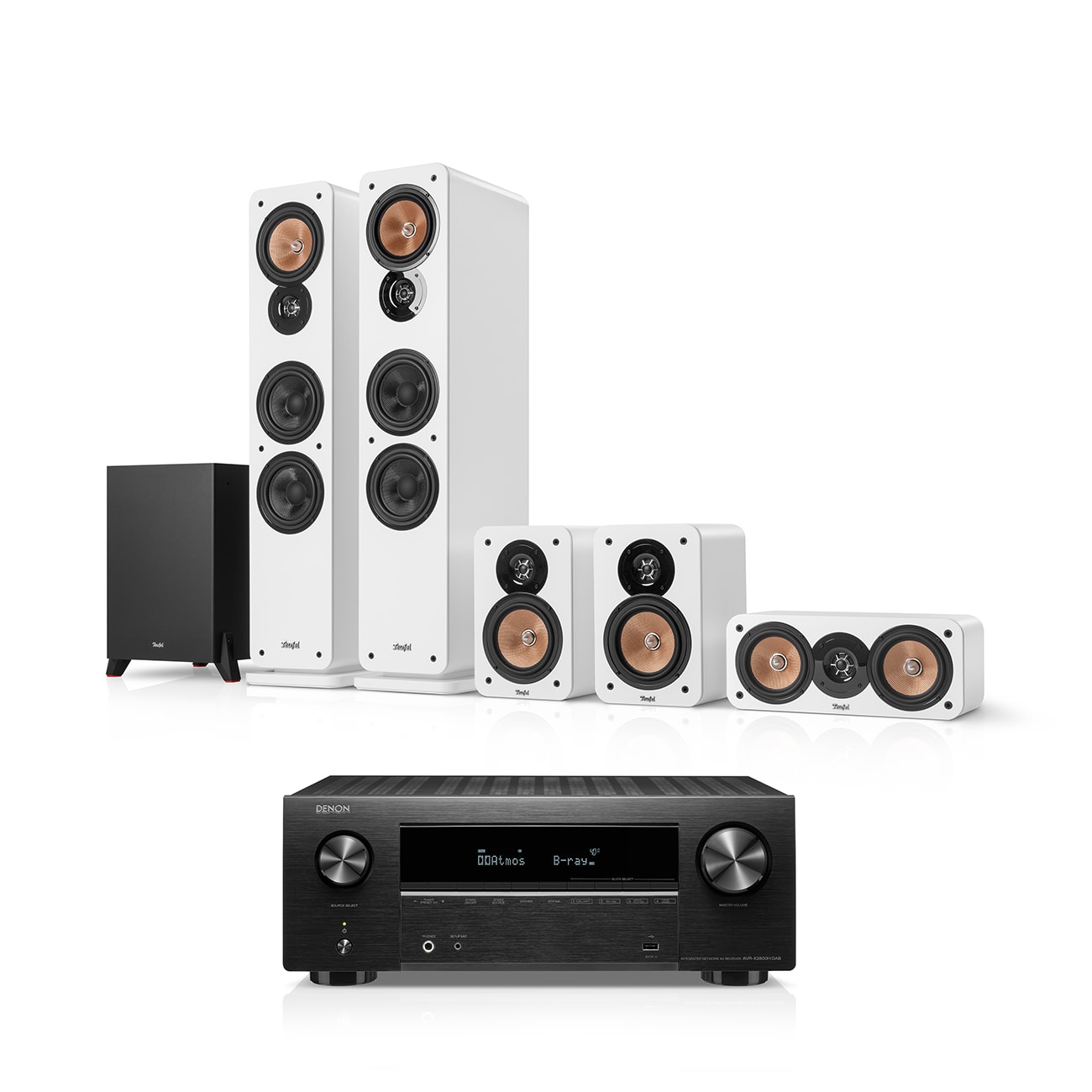

ULTIMA 40 Surround + DENON X2800H DAB "5.1-Set" Legendary sound all around you

Key advantages at a glance

• Ready to play 5.1 complete set including Denon AVC-X2800H DAB receiver, and next generation ULTIMA 40 Series (Mk4) for impression-making audio immersion and precise localization of all sound events for music, movies, and games in rooms up to 35 m²
• Perfectly matched complete set includes: 2x ULTIMA 40 (Mk4), Center (Mk4), Subwoofer T 10, ULTIMA 20 Rear speaker (Mk4), Denon AVR-X2800H DAB AV receiver, cable set (2.5 m C3525W subwoofer cable, 30 m C2530S speaker cable)
• ULTIMA 40 with 25-mm tweeters with wave guide for detailed spacial audio, 3-way system with two high-durability woofers for balanced dynamics and zero distortion even at high volume, center with double woofers and phase plug for the ultimate in dialogue comprehension
• Denon AVR-X2800H DAB with Dolby Atmos, Dolby Atmos Height Virtualization, Dolby True HD, DTS:X, DTS Neural:X, DTS Virtual:X, DTS-HD Master Audio, Radio über DAB+/FM, Works with Alexa, Google Assistant, Apple Siri, Bluetooth, Amazon Music, AirPlay 2, Napster, TuneIn, Deezer, Spotify, Soundcloud, TIDAL and HEOS® Built-in
• HDMI with 8K/60Hz and 4K/120Hz video pass-through, HDCP 2.3, HDR (Dolby Vision™, HDR10+, HLG, 3D), Enhanced Audio Return Channel (eARC), RCA input
• Powerful T 10 Subwoofer, which can be configured in front- or down-firing modes. Can be connected wirelessly.
• FSC®-certified wood, modern timeless design with satin-polished lacquered front and high-quality fabric covers, brass-coated bi-wiring/bi-amping screw terminals, easy to upgrade to 7.x.x, wall mounts available under accessories

Features

Popular all over Europe

The ULTIMA series is the result of over 40 years of experience designing speakers. It stands for extremely good sound at a reasonable price like no other speaker. With premium-class technologies, it reproduces balanced sound with Teufel’s classic punchy bass.

One special feature of the ULTIMA is that it still sounds big even for quiet background music. The ULTIMA series means that you get to experience music, games and TV audio the way they are supposed to sound regardless of volume.

Tasteful design delivered

Check out the ULTIMA from every angle

Engineered in Berlin

Our laboratories and anechoic chambers are still where we engineered the current ULTIMA Mk4 Series. We gave the design a facelift and made it look a little nicer – it is now more timeless and modern than ever. We also incorporated tons of customer feedback.

Value you can feel

The front, which now features a very purist design, has also hidden the cover mounts better. The covers themselves look more elegant and feel similar to a high-quality textile, which makes them easier to fit into any living room.

Stable fabric grille with all-round bevel - the frequency response is only minimally affected.

The solid, heavy housing, precise workmanship and uniform radii make the speaker a real eye-catcher.

The surfaces are scratch-resistant and easy to clean. The bass reflex tubes contain grilles to prevent children from throwing objects into them.

Phase-Plug

The phase plug, which sits in the middle of the bass-midrange driver is a special feature of the ULTIMA series. It distributes the sound optimally and ensures the best possible speech intelligibility. Listen with the whole family and simply understand everything, even if you have to sit further to the left or right.

More ways, more listening

At Teufel, it is important to us to constantly improve our products, which also includes producing them in a more environmentally friendly way. That's why we are using FSC®-certified wood for the entire body of the new ULTIMA series for the first time. In addition, the packaging is made entirely from recycled cardboard and does not use any plastics.

Tasteful design delivered

Check out the ULTIMA from every angle

Tech from the big boys

As a fully-fledged bookshelf speaker or rear speaker, the ULTIMA 20 makes no compromises. It fits on a shelf, on a stand (AC 7001 SP 2) or on the wall (AC 7500 SM). Visually and sonically, it is perfectly matched to its big sister. Pinpoint localization for games and impressive immersion for TV audio is guaranteed.

It is simply packed to the brim with state-of-the-art audio technology.

• Balanced frequency response even near the limits of its range thanks to Klippel® measurement technology
• 2-way system in a bass reflex cabinet for balanced reproduction with Teufel’s classic kick bass
• Large 25 mm tweeters with waveguide enable a wide dispersion range and soft, never aggressive highs
• Thick-walled MDF material with internal bracing ensures stable construction and long durability

Show me more

Specifications

UL 40 Mk4 25 floorstanding speaker (1 pc.)

• Description	Item
  Width	25 cm
  Height	106.9 cm
  Depth	35.2 cm
  Weight	21.3 kg

• Description	Item
  Terminal clamps	Screw terminals, brass coated

• Description	Item
  Suitable for AV receiver	Yes
  Banana plug compatible	Yes
  Bi-Amping/Bi-Wiring	Yes
  Maximum cable diameter	4 mm
  Equalization port (position)	back
  Equalization port	2
  Removable front cover	Yes
  Cabinet material	MDF
  Cabinet surface	Laminated
  Net internal volume	52 L
  Integrated stand	Yes
  Tweeter (number per enclosure)	1
  Tweeter (diameter)	25 mm
  Tweeter (material)	Textile
  Midrange driver (number per enclosure)	1
  Midrange driver (diameter)	165 mm
  Midrange driver (material)	Kevlar
  Woofer (number per enclosure)	2
  Woofer (diameter)	165 mm
  Woofer (material)	Fibreglas
  Continuous power handling (IEC - Long Term)	120 W
  Sensitivity (2.83 V / 1 m)	87 dB
  Frequency range	39 - 20000 Hz
  Peak power capacity (IEC - Short Term)	200 W
  Maximum sound pressure level	108 dB/1m
  Impedance	4 - 8 Ohm
  Acoustic principle	3-way-system
  Enclosure type	Bass reflex
  FSC® certified wood	Yes

UL 20 Mk4 25 bookshelf speaker (1x)

• Description	Item
  Width	21.5 cm
  Height	33.5 cm
  Depth	25.1 cm
  Weight	6.2 kg

• Description	Item
  Terminal clamps	Screw terminals, brass coated

• Description	Item
  Banana plug compatible	Yes
  Maximum cable diameter	4 mm
  Equalization port (position)	back
  Equalization port	1
  Removable front cover	Yes
  Cabinet material	MDF
  Cabinet surface	Laminated
  Net internal volume	10.5 L
  Wall mounting brackets	Yes
  Tweeter (number per enclosure)	1
  Tweeter (diameter)	25 mm
  Tweeter (material)	Textile
  Bass/Midrange driver (number per enclosure)	1
  Bass/Midrange driver (diameter)	165 mm
  Bass/Midrange driver (material)	Kevlar
  Continuous power handling (IEC - Long Term)	50 W
  Sensitivity (2.83 V / 1 m)	87 dB
  Frequency range	60 - 20000 Hz
  Peak power capacity (IEC - Short Term)	80 W
  Maximum sound pressure level	104 dB/1m
  Impedance	4 Ohm
  Acoustic principle	2-way-system
  Enclosure type	Bass reflex
  Crossover frequency internal switch	2800 Hz

Subwoofer-Cable 2.5m - C3525W

• Description	Item
  Cable length	2.5 m

Center speaker UL 40 C Mk4 25

• Description	Item
  Width	42 cm
  Height	17.2 cm
  Depth	18.6 cm
  Weight	5.9 kg

• Description	Item
  Terminal clamps	Screw terminals, brass coated

• Description	Item
  Banana plug compatible	Yes
  Maximum cable diameter	4 mm
  Removable front cover	Yes
  Cabinet material	MDF
  Cabinet surface	Laminated
  Keyhole plate mounted	Yes
  Wall mounting brackets	Yes
  Tweeter (number per enclosure)	1
  Tweeter (diameter)	25 mm
  Tweeter (material)	Textile
  Bass/Midrange driver (number per enclosure)	2
  Bass/Midrange driver (diameter)	130 mm
  Bass/Midrange driver (material)	Kevlar
  Continuous power handling (IEC - Long Term)	100 W
  Sensitivity (2.83 V / 1 m)	88 dB
  Frequency range	80 - 20000 Hz
  Peak power capacity (IEC - Short Term)	150 W
  Maximum sound pressure level	107 dB/1m
  Impedance	4 - 8 Ohm
  Acoustic principle	2-way-system
  Enclosure type	Closed

T 10 Subwoofer

High-end-class active subwoofer that can be configured in either front- or down-firing modes

• Description	Item
  Width	35.1 cm
  Height	48.3 cm
  Depth	38 cm
  Weight	15.6 kg

• Description	Item
  Cinch input	1

• Description	Item
  Power supply voltage	230 V
  Automatic on/off	Yes
  Maximum power consumption	150 W
  Fixed AC power cable	Yes
  Safety class	2
  Fuse	Yes
  Storage for settings when disconnected	Yes
  Standby-Function	Yes
  Standby-Power consumption	1 W
  Bass boost/EQ	Yes
  Input gain adjustment	Yes
  Level control	Yes
  Phase control	Yes
  Wireless Subwoofer	Yes
  Power output capacity impulse (peak) Bass	150 W
  Amplifier configuration	1.0
  Amplifier technology	Class D
  Amplifier channels	1

• Description	Item
  Lowest frequency (-3 dB)	33 Hz
  Suitable for AV receiver	Yes
  Equalization port	1
  Down-firing	Yes
  Front-firing	Yes
  Cabinet material	MDF
  Cabinet surface	Laminated, matte
  Integrated stand	Yes
  Woofer (number per enclosure)	1
  Woofer (diameter)	250 mm
  Woofer (material)	Aluminium
  Frequency range	33 - 190 Hz
  Maximum sound pressure level	115 dB/1m
  Acoustic principle	1-way-system
  Enclosure type	Bass reflex

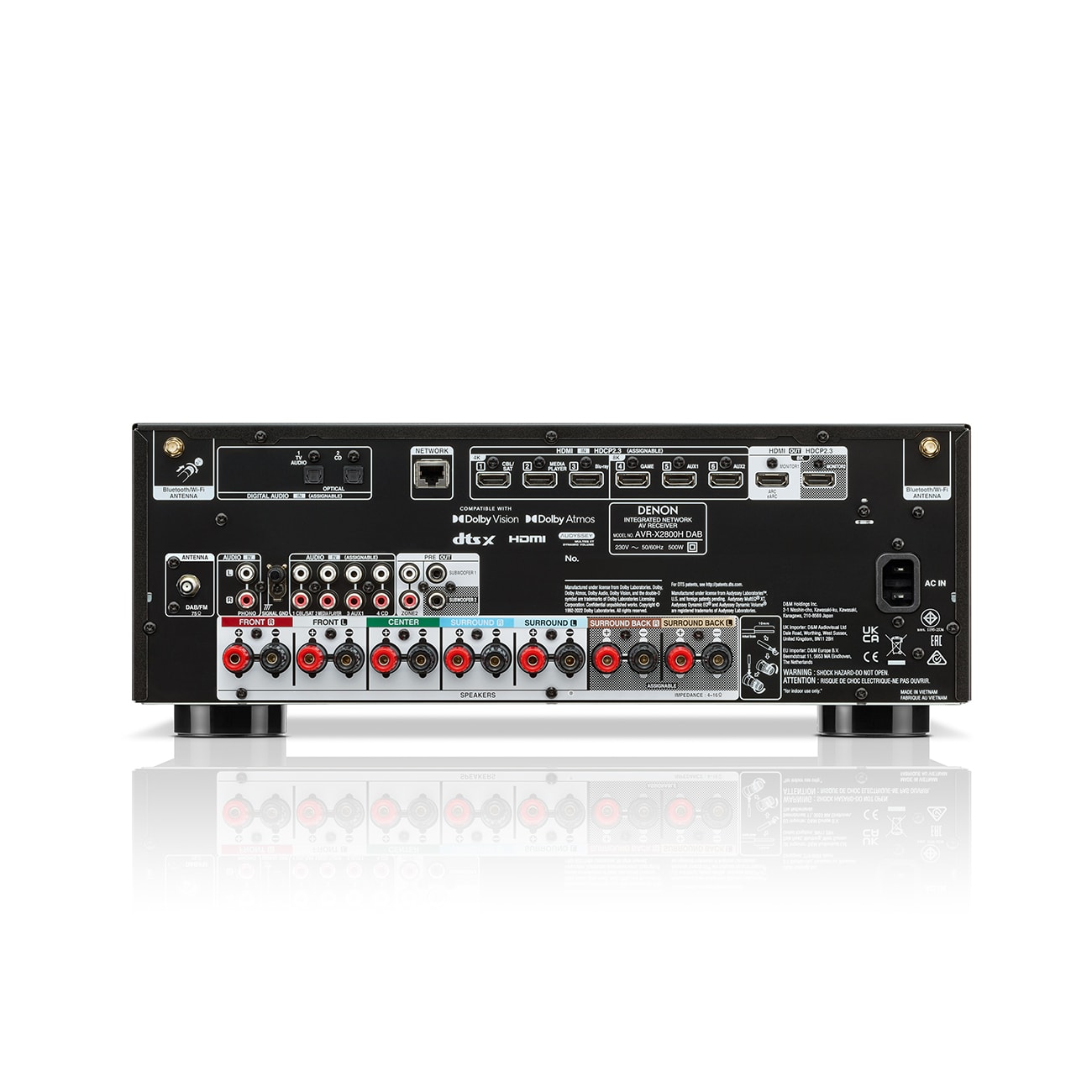

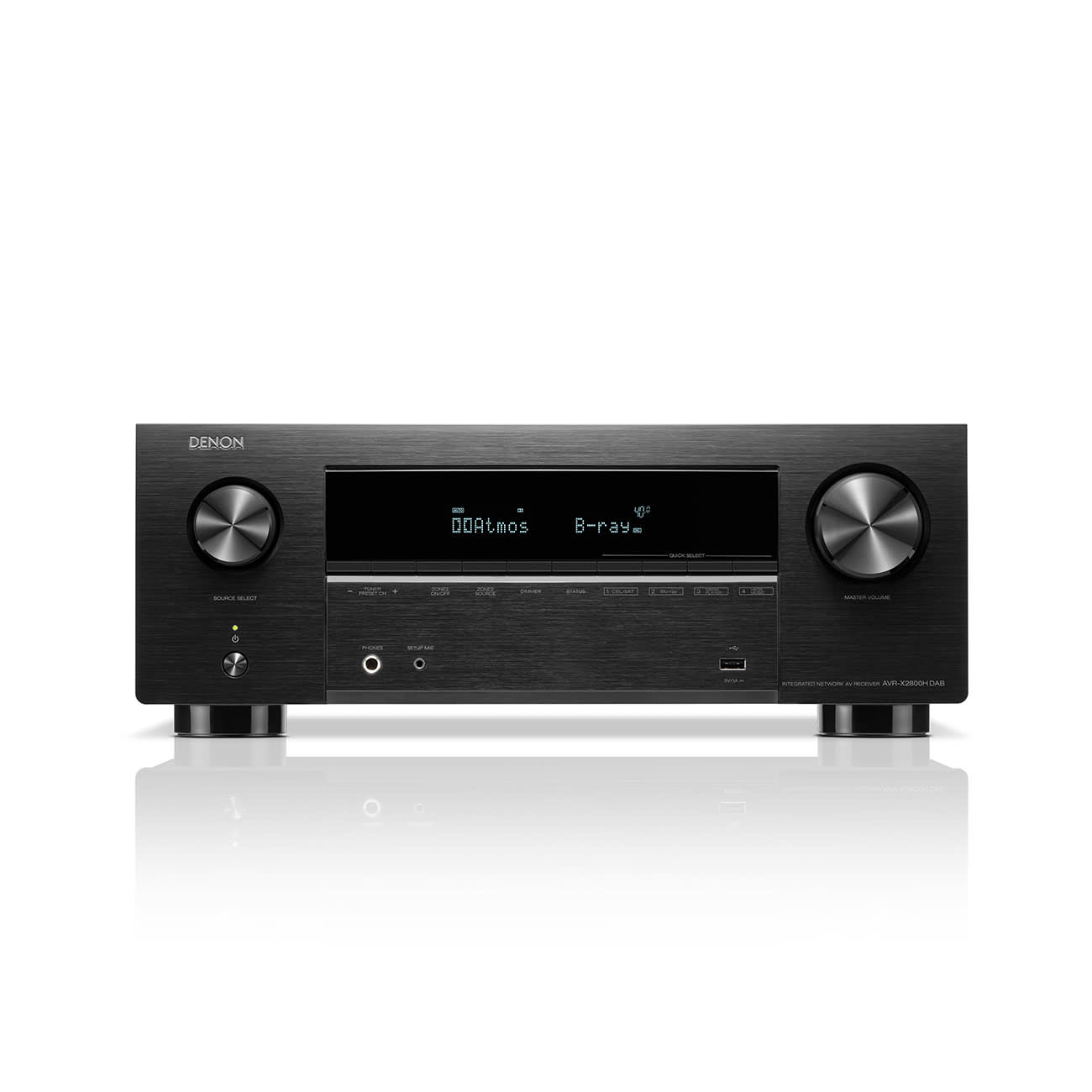

DENON AVR-X2800H DAB

Top-of-the-line 5.2.2 or 7.2 AV receiver with 150 watts output power per channel

• Description	Item
  Width	43.4 cm
  Height	16.7 cm
  Depth	34.1 cm
  Weight	9.5 kg

• Description	Item
  Headphone output 6,3mm	1
  AUX	Yes
  Digital inputs optical	2
  AirPlay 2	Yes
  Bluetooth	Yes
  LAN	Yes
  Wifi	Yes
  HDMI 3D ARC CEC‌	Yes
  Video outputs - HDMI	2
  Video inputs- HDMI	6
  HEOS® Built-in	Yes

• Description	Item
  Dolby Atmos	Yes
  Dolby Pro Logic II	Yes
  Dolby Surround	Yes
  Dolby TrueHD	Yes
  Dolby Vision Compatible	Yes
  DTS Digital Surround	Yes
  DTS Virtual:X	Yes
  DTS-HD High Resolution Audio	Yes
  DTS-HD Master Audio	Yes
  DTS:X	Yes
  HDR10+	Yes

• Description	Item
  DAB+	Yes
  FM	Yes

• Description	Item
  Output performance amplifier: Satellites	150 W
  Amplifier channels	7
  4K UHD Upscale	Yes

• Description	Item
  Amazon Music	Yes
  Deezer	Yes
  napster	Yes
  Spotify	Yes
  TIDAL	Yes
  TuneIn	Yes

• Data Sheet [PDF]
